Top support, also known as adjustable jack, adjustable support, screw jack or oil jack, is a key component in scaffolding and formwork support systems in construction. Used in conjunction with steel pipe scaffolding, it plays a critical role in height adjustment, load transfer and balanced support.
Durable Structure: The scaffolding steel adjustable screw hollow/solid spindle jack base is made of high-quality Q235 steel, ensuring a sturdy and durable structure capable of withstanding heavy loads and harsh construction environments.
Customizable Specifications: Available in various lengths (400/550/600/750mm) and diameters (30/32/34/38/48mm), this product can be customized to meet specific user requirements, including those designated by particular users.
Versatile Design: Equipped with a U-shaped head or base plate for support, this jack base provides multiple options for supporting construction projects, offering flexibility and convenience.
Compliance and Certification: The product meets ISO 9001 standards, ensuring adherence to industry regulations and providing quality and safety assurance.
Scaffold Adjustable Base Jack / Scaffolding U Head Jack
Our scaffolding adjustable jacks include base jacks (bottom screw jack) and U-head jacks (top screw jack), essential load-bearing adjustable accessories for ring lock scaffolding, cuplock scaffolding, frame scaffolding and aluminum formwork systems.

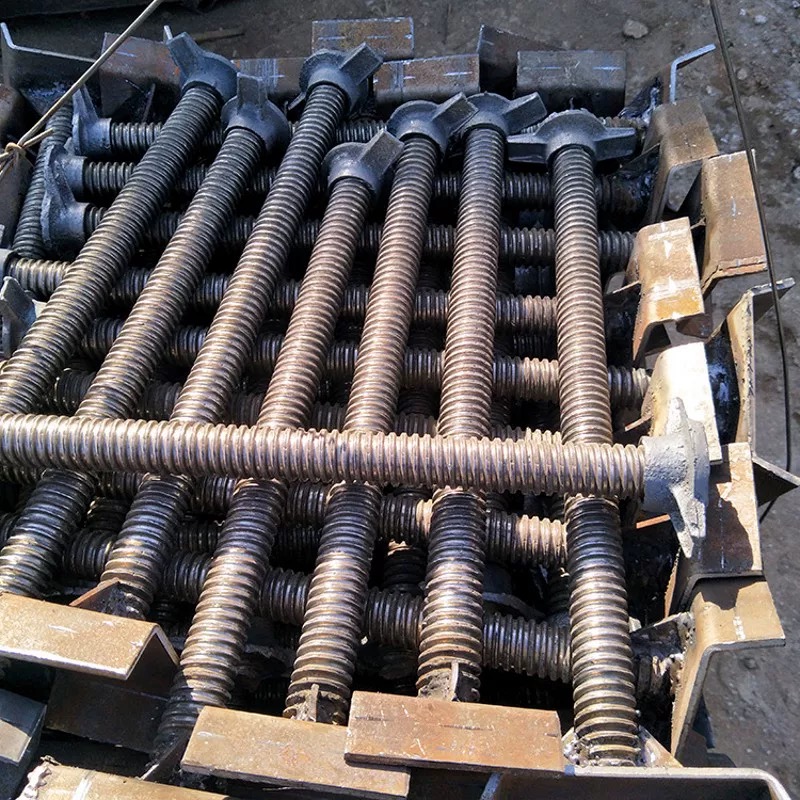

This adjustable screw jack is made of solid carbon steel, fully threaded with trapezoidal heavy-duty threads, equipped with cast iron nut and galvanized anti-rust surface. It can freely adjust the height of the entire scaffolding frame, balance uneven ground load, support concrete beams and slabs during building construction. Widely used in high-rise building construction, bridge engineering, tunnel formwork, viaduct projects and indoor renovation scaffolding support.
Split into two mainstream types:

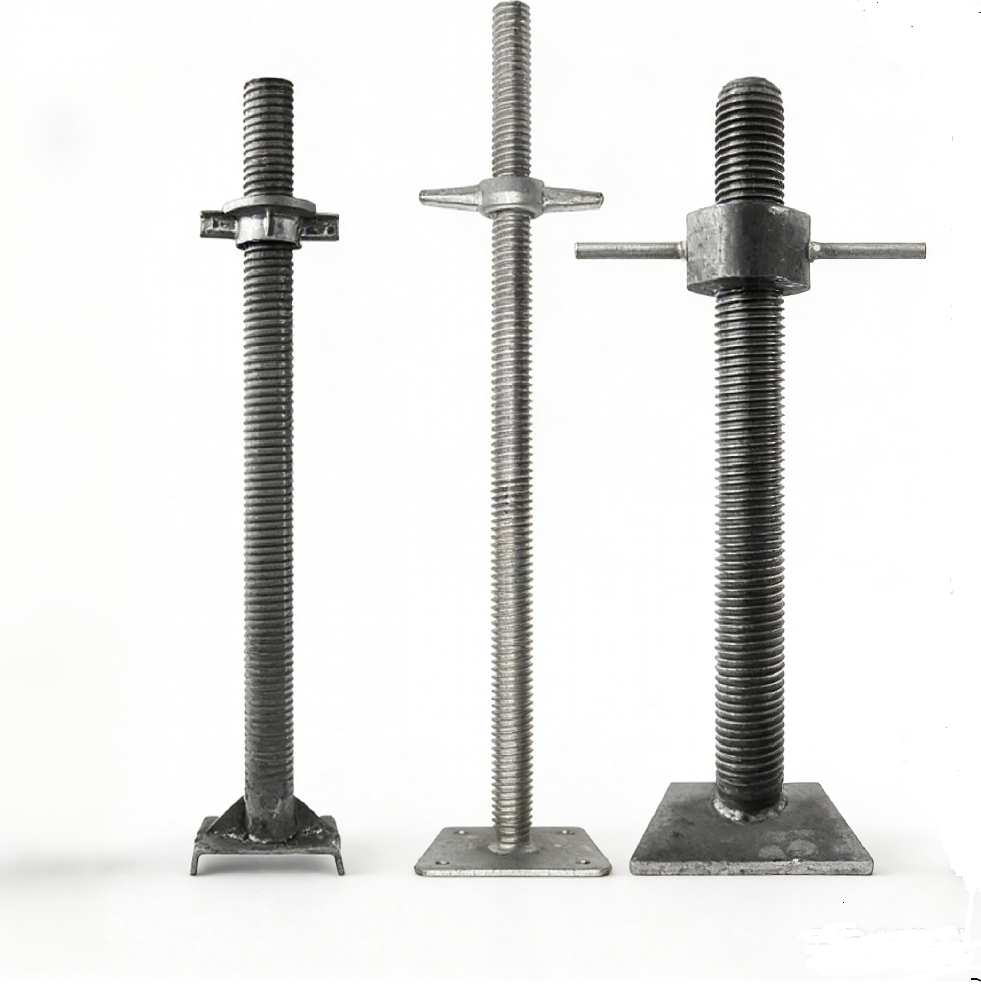

Base Jack (Bottom Jack): Flat square base plate + threaded rod + adjusting nut, placed at the bottom of scaffolding uprights to level the scaffold on uneven ground.

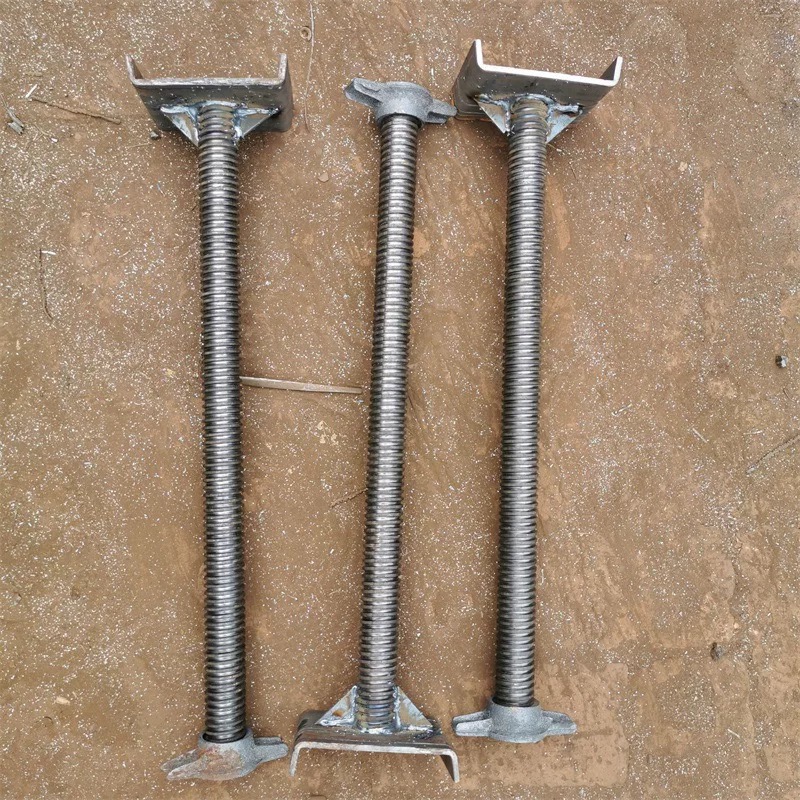

U Head Jack (Top Jack): U-shaped saddle head + threaded rod + adjusting nut, installed on top of vertical poles to bear wood beams, steel joists and formwork weight.
Adopt thick trapezoidal full thread, larger contact stress area, strong bearing capacity, no sliding thread under heavy concrete pouring load. Smooth rotation of cast iron adjusting nut, easy height fine-tuning for construction workers, lock height firmly after adjustment to prevent sinking.
Whole product hot galvanized surface, thick zinc layer completely covers thread, nut and base plate. Resist rain, mud, cement water and outdoor long-term exposure, effectively avoid rust blocking threads, extend service life of repeated turnover construction. Far superior to ordinary paint or blackening treatment.
Threaded rod: Solid Q235 carbon steel, thickened rod body, anti-bending, not easy to deform under heavy load.
Base plate: Thickened square steel plate with mounting holes, large contact area to disperse pressure, prevent sinking on soft ground.
Cast iron nut: Ductile cast iron wing nut, impact resistant, durable for thousands of times of adjustment.
U-head saddle: Thickened stamped steel U bracket, stable clamping for wooden beams without slipping.
Complete set consists of threaded rod + adjusting nut + base/U head, no extra assembly parts. Directly matched with standard scaffolding vertical tubes, flexible height adjustment range. After construction disassembly, clean and reuse for multiple projects, greatly reduce construction auxiliary material procurement cost.

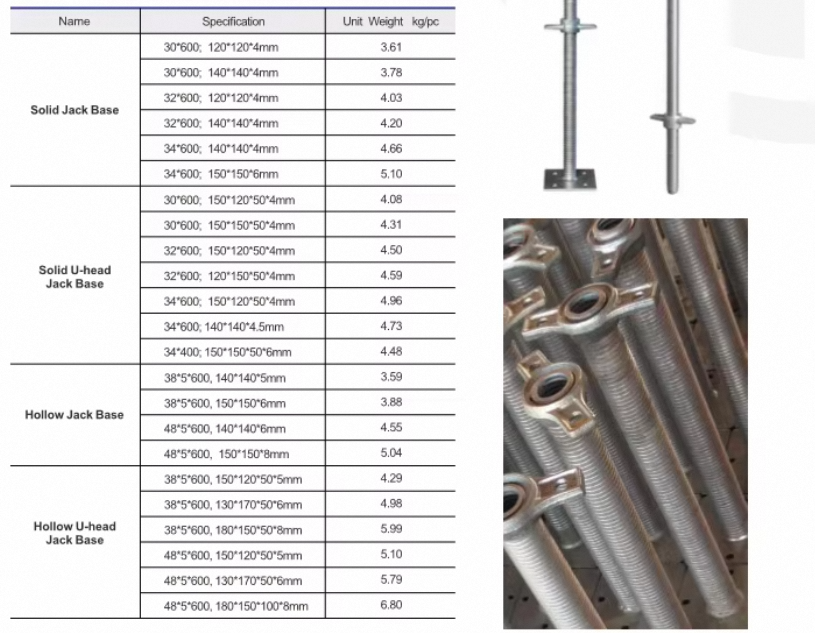

Standard specifications for export mainstream markets:
Rod diameter: 32mm, 34mm, 36mm, 38mm
Total length options: 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm
Base plate size: 120120mm, 150150mm, 180*180mm thickened plate Support customized rod length, plate thickness, galvanized thickness according to customer drawings, factory direct bulk supply with competitive factory price.
Civil & commercial high-rise building construction scaffolding leveling support
Bridge, viaduct, highway tunnel concrete formwork load bearing
Indoor decoration, mall renovation mobile frame scaffolding height adjustment
Aluminum formwork system matching adjustable support jack
Municipal engineering, stadium, large venue temporary support frame
Mine tunnel, underground engineering temporary load-bearing scaffold
Shipyard, factory workshop heavy-duty temporary support frame
Material: Q235 solid carbon steel rod, ductile iron nut, steel base/U plate
Surface Treatment: Hot-dip galvanized (electro-galvanized optional for light-duty use)
Thread Type: Heavy trapezoidal thread
Product Types: Adjustable Base Jack, Adjustable U Head Jack
Adjustable Range: 200–800mm adjustable stroke (depends on total rod length)
Load Capacity: Standard model static bearing ≥20 tons, heavy-duty customized ≥30 tons
Matching Scaffold: Ring lock, cuplock, frame scaffolding, aluminum formwork
Packing: Woven bag packaging, fumigated wooden case for export container shipment
For Base Jack: Place flat base plate on ground, insert scaffold vertical tube over threaded rod, rotate wing nut to adjust frame horizontal height, solve slope/uneven foundation problems.
For U Head Jack: Mount on top of vertical poles, place wooden/steel beams inside U saddle, adjust height to precisely support concrete formwork slabs.
Thick trapezoidal thread ensures stable load bearing during concrete pouring, no height offset under vibration from concrete vibrators.
Galvanized surface prevents cement mortar adhesion, easy to clean after construction for repeated turnover.
We are professional scaffolding accessories manufacturer with over 20 years production experience, complete production lines for cutting, threading, galvanizing and casting.
All jacks pass load-bearing pressure test before delivery, provide factory test report for customs clearance.
Global export supported, FOB Tianjin/Shanghai port delivery, accept small trial orders and full container bulk orders.
We can provide high-definition white background product photos, dimension drawings, technical data sheets free for independent store listing, support customized printing customer brand logo on packaging.
