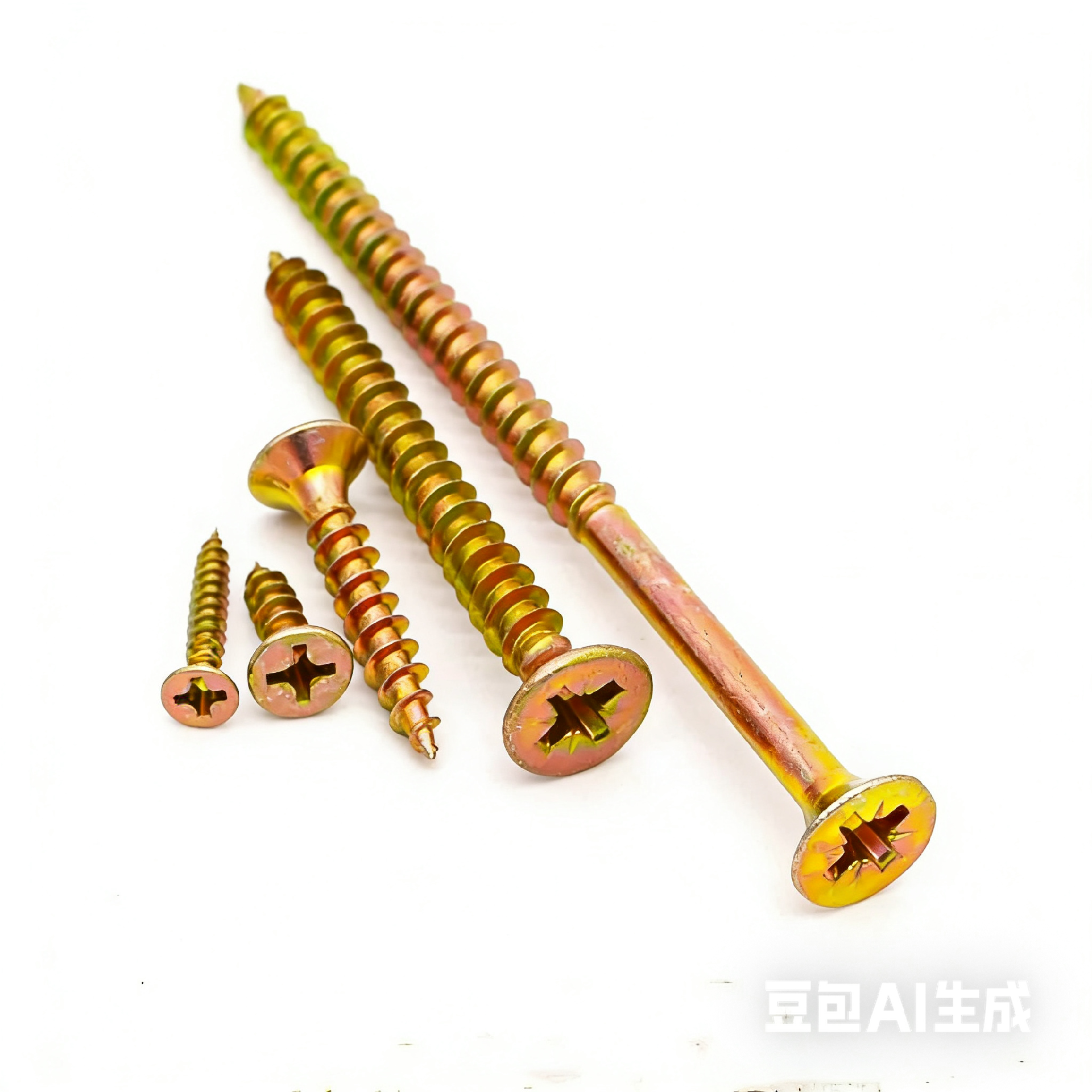

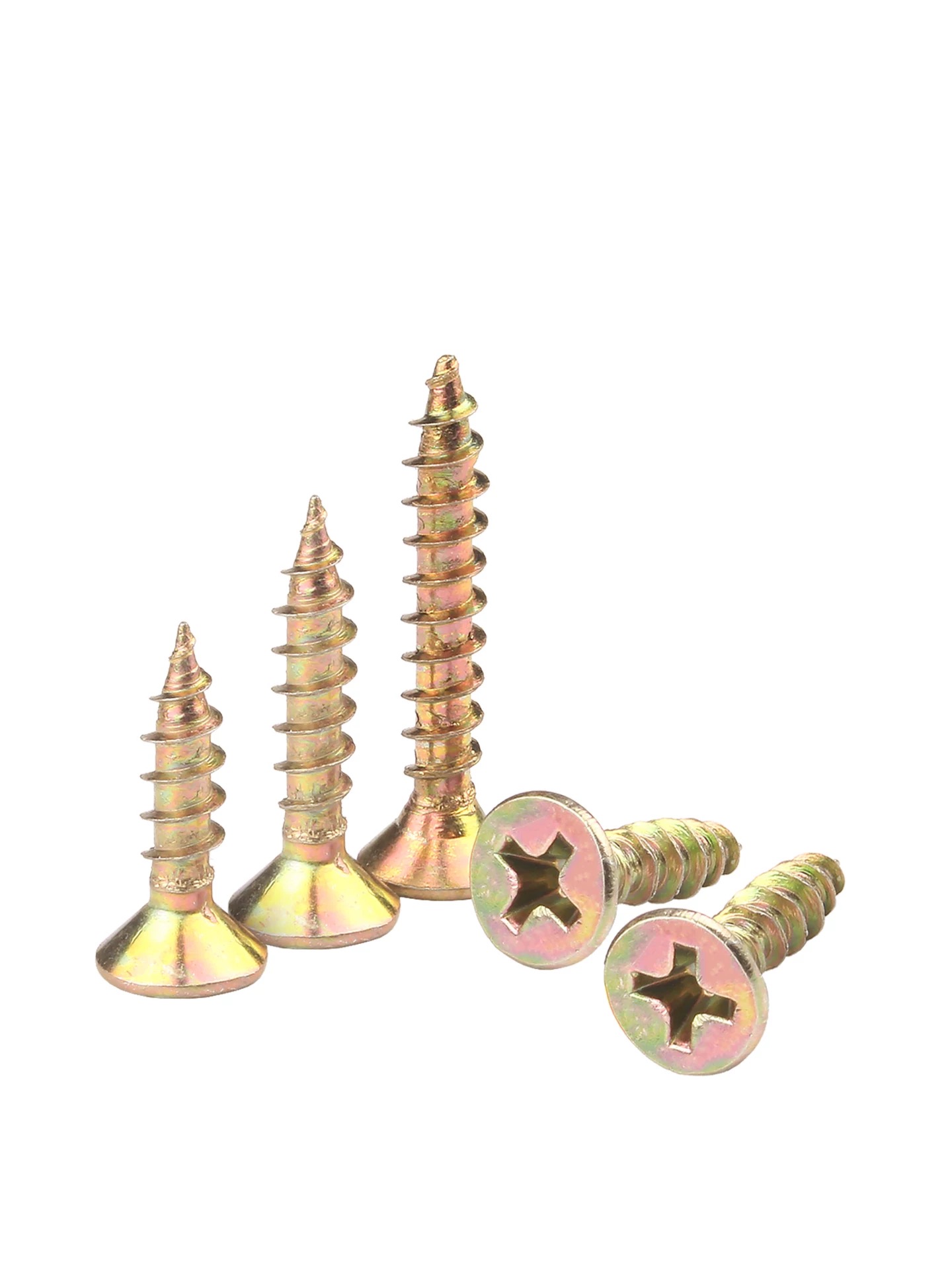

Particle Board ScrewsParticle board screws, also known as fiberboard screws, are self-tapping screws specially designed for man-made boards such as fiberboard, particleboard and MDF (Medium Density Fiberboard). They are widely used in furniture manufacturing and interior decoration.I. Core Features•
| Item | Specification |
|---|---|
| Product Name | Chipboard Screw / Particle Board Screw |
| Material | Carbon Steel C1018 / C1022 |
| Head Style | Countersunk Flat Head |
| Drive Type | Phillips Cross Recess |
| Thread | Coarse self‑tapping thread |
| Point | Sharp needle point, no pre‑drilling needed |
| Available Sizes | M3.5, M4, M5, M6 |
| Length Range | 12‑150mm, custom lengths supported |
| Standard Surface | Yellow zinc‑plated |
| Optional Surface | Blue‑white zinc‑plated |
| Usage Environment | Indoor dry condition |
| Main Application | Particle board, MDF, plywood, furniture, cabinet & interior decoration |
| Packing | Bulk carton / small retail box, custom packing acceptable |
Standard Available Sizes
M3.5*12/14/16/25/35/40/50;
M4*12/14/16/20/25/30/35/40/50/70/80/100;
M5*16/20/25/30/35/40/50/70/80/100/120 ;
M6*30/35/40/50/70/80/100/110/120/150.
Particle board screws, also known as chipboard screws or fiberboard screws, are self‑tapping fasteners specially engineered for wood‑based man‑made panels, including particleboard, fiberboard and MDF (Medium Density Fiberboard). They are extensively applied in furniture manufacturing and interior decoration projects.
Thread Design: Coarse and deep threads with wide pitch deliver outstanding holding power and greatly reduce the risk of board cracking during installation.
Head Style: Phillips cross‑recessed countersunk head, which sinks fully flush into panel surfaces for neat finish and avoids protruding snags.
Material & Hardness: Manufactured from high‑quality carbon steel C1022A, heat‑treated to reach hardness HRC 45‑52. Direct installation without pre‑drilling is feasible for most working conditions.
Surface Finish: Yellow‑zinc plating as standard; blue‑white zinc plating is optional, providing moderate rust resistance and nice visual appearance for indoor environments.
Diameter: 3.5, 4.0, 4.5, 5.0, 6.0
Length: 12‑150 mm, multiple standard lengths available, custom lengths are acceptable
Popular Stock Sizes: 3.5×16 mm — for hinge mounting 4.0×25 mm — for cabinet assembly 4.0×40 mm — for interior wall panel fixing
Furniture Manufacturing: Cabinets, wardrobes and all kinds of panel‑type furniture assembly
Interior Decoration: Fixing slides, hinges, handles and wood veneer sheets
Panel Connection: Joining particleboard, MDF, plywood and solid‑wood components
Composite Connection: Fastening wood panels onto thin steel sheets or plastic substrates
Anti‑cracking Performance: Optimized coarse‑thread structure effectively prevents splitting of artificial wood boards
Superior Holding Strength: Deep thread profile provides excellent pull‑out resistance
High Installation Efficiency: Pre‑drilling is unnecessary in most cases; perfectly compatible with electric screwdrivers
Long‑term Durability: Quenched‑hardened body reduces screw breakage risk; zinc‑plated finish offers indoor anti‑corrosion performance
Supplementary Note: Suitable for indoor dry‑condition use only. Not recommended for long‑term outdoor exposure without extra anti‑corrosion treatment.
